TileLayer Class Reference

efficiently handles large tile datasets, useful for backgrounds, terrains, etc... More...

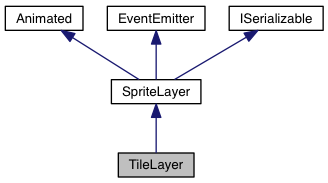

Inheritance diagram for TileLayer:

Collaboration diagram for TileLayer:

Public Member Functions
number	checkCollision (Sprite movingSprite, uint alphaThreshold=128, boolean shortCircuit=true)
	see if a sprite has collided with tiles in a layer More...
	defineTileSet (int tileWidth, int tileHeight, Image tiles, boolean hasTransparency=true, boolean flipTiles=false)
	define image and dimensions for the tiles used by this layer More...
MemBlock	getMapData (int mapWidth=0, int mapHeight=0, int srcX, int srcY)
Image	getTileSetImage ()
	get the Image currently being used as a tile set More...
Point	getTileSize ()
	get size of a tile in the image More...
object	getTileTypeAndFacingAt (int x, int y)
	get the tile type and the facing/flipped state of the tile More...
number	getTileTypeAt (int x, int y)
	get the tile type at a particular spot on the map More...
Rect	getWorldBounds ()
	get the size in layer coordinates of the world map More...
Rect	getWorldSize ()
	get the number of tiles in the map More...
	loadMapData (BinaryString data, int mapWidth=0, int mapHeight=0, int dstX, int dstY)
	loadMapData (MemBlock data, int mapWidth=0, int mapHeight=0, int dstX, int dstY)
	setTileTypeAt (int x, int y, uint t, uint facing=facing_Ignore)
	sets the type of tile at a given location on the map More...
	setWorldSize (int width, int height, boolean repeatingX=false, boolean repeatingY=false)
	sets the number of tiles in the world map More...
Public Member Functions inherited from SpriteLayer
	addSprite (Sprite newSprite)
	add an existing sprite to the layer More...
Sprite	createSprite ()
	create a sprite that belongs to this layer More...
Sprite	createSpriteFromSCML (string inSCML, string inEntityName=null)
	create a single sprite from SCML data More...
Sprite	createSpriteFromSCMLEntity (string inEntityName)
	create a sprite from SCML data that was previously loaded More...
Sprite	createSpriteFromSCMLFile (string inFileName, string inEntityName=null)
	create a sprite from an SCML data file More...
	deserialize (Deserializer deserializer)
	deserialize a sprite layer More...
	disableCollisions ()
	stop checking for collisions between objects in this layer More...
	disableCollisionsWithLayer (SpriteLayer otherLayer)
	remove layer from list of layers that do collisions between layers More...
	enableCollisions ()
	allow collision checking for sprites in this layer More...
	enableCollisionsWithLayer (SpriteLayer otherLayer)
	start collision checking with sprites in another layer More...
	fadeIn (int msDuration, int easing=linearTween)
	fade entire layer to full opacity over time More...
	fadeOut (int msDuration, int easing=linearTween)
	fade out the entire layer to full transparency over time More...
Sprite	findSprite (int id)
	find a sprite in this layer by user assigned id More...
number	getMyClassTag ()
	returns class tag for SpriteLayer, used for serialization More...
Sprite	getNthSprite (int index)
	get a sprite by z-order More...
Point	getOrigin ()
	get the point in the layer that is drawn at 0,0 in the port More...
uint	getSerializedSize (Serializer serializer)
	get the bytes needed to serialize the layer More...
CpSpace	getSpace ()
	get the Chipmunk Physics CpSpace for the layer More...
Port	getSpritePort ()
	get the Port the layer renders into More...
int	getSpriteZOrder (Sprite sprite)
	get the z-order of a sprite in this layer More...
number	getZoom ()
	get the current zoom factor More...
int	getZOrder ()
	get the z-order of this layer compared to all others More...
boolean	hasSprite (Sprite sprite)
	see if a particular sprite belongs to this layer More...
	hide ()
	stop rendering this layer. More...
boolean	isHidden ()
	true if layer is hidden, false if it is visible More...
boolean	isSpriteBehind (Sprite sprite, Sprite otherSprite)
	returns true if sprite will be drawn before otherSprite More...
Offset	layerToPortOffset (Offset o)
	adjust the offset to account for layer transformations More...
Point	layerToPortPoint (Point p)
	translate the point to account for layer transformations More...
Quad	layerToPortQuad (Quad q)
	translate the Quad to account for layer transformations More...
RotatedRect	layerToPortRect (Rect r)
	translate the rectangle (or RotatedRect) to account for layer transformations More...
Vector	layerToPortVector (Vector v)
	translate the point to account for layer transformations More...
	moveBehind (SpriteLayer layer)
	change the z-order of this layer to draw it before the given layer More...
	moveInFrontOf (SpriteLayer layer)
	change the z-order of this layer to draw it after the given layer More...
	moveToBack ()
	move this layer behind all other layers More...
	moveToFront ()
	move this layer in front of all other layers More...
	moveWith (SpriteLayer layer, number moveRatio=1.0, number zoomRatio=1.0)
	link this layer to follow another layer's movements More...
IEventHandler	on (int eventCode, function func)
	set event handler for all different sprite and spritelayer events More...
IEventHandler	onAnimationComplete (function func)
	set event handler for layer animation complete events More...
IEventHandler	onAnimationEnd (function func)
	set event handler for sprite animation end events More...
IEventHandler	onAnimationLoop (function func)
	set event handler for sprite animation loop events More...
IEventHandler	onAnimationStart (function func)
	set event handler for layer animation complete events More...
IEventHandler	onCollideSprite (function func)
	set event handler for sprite-to-sprite collision events More...
IEventHandler	onCollideWall (function func)
	set event handler for sprite-wall collision events More...
IEventHandler	onDrawPortComplete (function func)
	set event handler for rendering complete events More...
IEventHandler	onErasePort (function func)
	set event handler for rendering starting events More...
IEventHandler	onExitLayer (function func)
	set event handler for sprite out of bounds event More...
IEventHandler	onFadeComplete (function func)
	set event handler for sprite fade event More...
IEventHandler	onFadeInComplete (function func)
	set event handler for sprite fade in event More...
IEventHandler	onFadeOutComplete (function func)
	set event handler for sprite fade out event More...
IEventHandler	onLayerFadeInComplete (function func)
	set event handler for layer fade in event More...
IEventHandler	onLayerFadeOutComplete (function func)
	set event handler for layer fade out event More...
IEventHandler	onMouseClick (function func)
	set event handler for tap or mouse click in a sprite More...
IEventHandler	onMouseDown (function func)
	set event handler for finger down or mouse down in a sprite More...
IEventHandler	onMouseEnter (function func)
	set event handler for mouse pointer over a sprite More...
IEventHandler	onMouseLeave (function func)
	set event handler for mouse pointer leaving a sprite it was over More...
IEventHandler	onMouseUp (function func)
	set event handler for finger up or mouse up in a sprite More...
IEventHandler	onOffscreen (function func)
	set event handler for sprite offscreen event More...
IEventHandler	onOnscreen (function func)
	set event handler for sprite onscreen event More...
IEventHandler	onPostAnimateLayer (function func)
	set event handler for layer animation finished events More...
IEventHandler	onPostDrawLayer (function func)
	set event handler for layer rendering complete events More...
IEventHandler	onPreAnimateLayer (function func)
	set event handler for layer animation start events More...
IEventHandler	onPreDrawLayer (function func)
	set event handler for layer rendering start events More...
IEventHandler	onZoomComplete (function func)
	set event handler for this layer finishing zoom animation More...
Offset	portToLayerOffset (Offset o)
	adjust the offset to account for layer transformations More...
Point	portToLayerPoint (Point p)
	adjust the point to account for layer transformations More...
Quad	portToLayerQuad (Quad q)
	adjust the quad to account for layer transformations More...
RotatedRect	portToLayerRect (Rect r)
	adjust the rectangle to account for layer transformations More...
Vector	portToLayerVector (Vector v)
	adjust the vector to account for layer transformations More...
	removeAllSprites ()
	remove all sprites in the layer More...
	removeSprite (Sprite oldSprite)
	remove a particular sprite from the layer More...
	serialize (Serializer serializer)
	serialize the sprite layer and all the sprites in it More...
	setAutoCenter (boolean autoCenter=true)
	keep the center of the layer at the center of the port More...
	setDamping (number damping)
	set the overall resistance to motion over time (Chipmunk Physics Only) More...
	setFixedMoveAxis (boolean fixedAxis=true)
	make movement of the layer relative to the port axis More...
	setGravity (number gravity, boolean keepItDownward=true)
	set the force of gravity pulling everything downward (Chipmunk Physics Only) More...
	setKeepGravityDownward (boolean keepItDownward=true)
	keep gravity relative to the port when the layer is rotated (Chipmunk Physics Only) More...
	setOrigin (Point origin)
	set the point in the layer that is drawn at 0,0 in the port More...
SpriteLayer	setSerializationFlags (uint flags)
	set the mode for sprite layer serialization More...
	setSpritePort (Port port)
	set the port this layer is rendered into More...
	setStaticLayer (boolean isStatic=true)
	make objects in this layer not subject to physics forces (Chipmunk Physics Only) More...
	setUseChipmunkPhysics (boolean useIt=true)
	enable or disable use of Chipmunk Physics for a particular layer More...
	setZoom (number zoomLevel)
	immediately set the zoom level for this layer More...
	show ()
	start rendering this layer if it was previously hidden More...
	startAnimations ()
	restart doing animation calculations for this layer if they were stopped More...
	stopAnimations ()
	stop doing animation calculations for this layer More...
	zoom (number deltaZoomLevel, int msDuration, int easing=easeInOutQuad, Rect keepInRect=Rect(0, 0), Point centerOn=Point(0, 0))
	animated zoom by a particular factor over time More...
	zoomTo (number zoomLevel, int msDuration, int easing=easeInOutQuad, Rect keepInRect=Rect(0, 0), Point centerOn=Point(0, 0))
	animated zoom to a particular zoom level over time More...
Public Member Functions inherited from Animated
	accelerate (number deltaSpeed, int msDuration=duration_Instantaneous, int easing=linearTween)
	change the object's speed over time More...
	accelerateTo (number speed, int msDuration=duration_Instantaneous, int easing=linearTween)
	change the object's speed to a particular value over time More...
	addAnimationHelper (IAnimationHelper helper)
	setup a helper to handle custom animation More...
boolean	animate (int msElapsed)
	animate based on the passage of time More...
	applyForce (Vector force, int msDuration=duration_Instantaneous)
	apply a force to the object over time More...
	applyTorque (number forceSpin, int msDuration=duration_Instantaneous)
	apply torque to the object over time More...
	changeCenter (Offset offset, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	shift the center point of the object over time More...
	changeCenterTo (Offset offset, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	shift the center point of the object to a particular offset from true center over time More...
	clearAnimationHelpers ()
	remove all previously added animation helpers More...
Rect	getBoundingBox ()
	get the rectangle that completely encloses the object More...
Offset	getCenterOffset ()
	get the current offset of the center relative to the true center point More...
number	getHeight ()
	get height of the object More...
Point	getLocation ()
	get the position of the object More...
number	getMass ()
	get the mass of the object More...
number	getMoveFriction ()
	get the amount of friction for movement More...
number	getMovementDirectionInRadians ()
	get the direction the object is moving More...
RotatedRect	getRotatedBounds ()
	get the bounds with rotation More...
number	getRotation ()
	get how much the object is rotated More...
number	getSizeFriction ()
	get the friction applied to size changes (growing or shrinking) More...
number	getSpeed ()
	get how fast the object is moving in pixels/sec More...
number	getSpin ()
	get how fast the object is spinning in radians per second More...
number	getSpinFriction ()
	get the friction applied toward spinning More...
Vector	getVelocity ()
	get the vector that expresses magnitude and direction of the object's movement in pixels/sec More...
number	getWidth ()
	get the width of the object More...
	grow (number factor, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	change size of the object by a factor over time More...
	move (Offset delta, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	move the object by a certain amount over time More...
	moveTo (Point where, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	move the object to a particular location over time More...
	removeAnimationHelper (IAnimationHelper helper)
	remove a specific animation helper More...
	resize (number deltaWidth, number deltaHeight, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	change the size of an object by a given amount over time More...
	resizeTo (number width, number height, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	resize the object to a specific size over time More...
	rotate (number radians, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	rotate the object by a specific amount over time More...
	rotateTo (number radiansRotation, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	rotate the object to face a particular direction over time More...
Animated	setCenterOffset (Offset inCenterOffset)
	set the offset of the center point relative to the true center More...
Animated	setFriction (number frictionCoefficient)
	set friction for movement, rotation and resizing all at once More...
Animated	setHeight (number inHeight)
	set the object's height More...
Animated	setLocation (Point inLocation)
	place the object at a particular location More...
Animated	setMass (number inMass)
	set the object's mass, used when forces are applied More...
Animated	setMoveFriction (number inMoveFriction)
	set the object's friction for movement More...
Animated	setRotation (number inRotation)
	set the direction the object is facing in radians More...
Animated	setSize (number width, number height)
	set the size of the object More...
Animated	setSizeFriction (number inSizeFriction)
	set the friction applied for object resizing More...
Animated	setSpeed (number inSpeed)
	set the speed the object is moving in its current direction of motion More...
Animated	setSpin (number inSpin)
	set the rate at which the object is spinning, in radians/sec More...
Animated	setSpinFriction (number inSpinFriction)
	set the friction the object faces for spinning More...
Animated	setVelocity (Vector deltaPerSec)
	set the speed and direction the object is moving More...
Animated	setVelocity (number deltaXPerSec, number deltaYPerSec)
	set the speed and direction the object is moving More...
Animated	setVelocityInRadians (number speed, number direction)
	set the speed and direction the object is moving More...
Animated	setWidth (number inWidth)
	set the width of the object More...
	startGrowing (number amountPerSecond)
	set the growth rate of the object in pixels/sec More...
	startStretching (number widthPerSecond, number heightPerSecond)
	set the growth rate of the object in pixels/sec, with varied rates for width and height More...
	stopAllForces ()
	remove all forces that were acting on the object (except friction) More...
	stopGrowing ()
	stop any size change More...
	stopMoving ()
	stop any movement the object was doing (except spinning) More...
	stopSpinning ()
	stop any spinning the object was doing More...
	stopStretching ()
	stop any stretching the object was doing More...
	stretch (number widthFactor, number heightFactor, int msDuration=duration_Instantaneous, int easing=easeInOutQuad)
	change the dimensions of the object over time More...
Animated	wait (int msDuration)
	wait before beginning the next animation call that operates over time More...
Public Member Functions inherited from EventEmitter
	addHandler (IEventHandler inHandler, int inEventType=all_events)
	add a new handler for some event type, or for all events if no type specified. More...
	blockEvent (int inEventType)
	temporarily ignore all events of a particular type. More...
	clear ()
	remove all handlers More...
	removeHandler (IEventHandler inHandler, int inEventType=all_events)
	remove a handler for some event type, or for all events (see note) if no type specified. More...
	unblockEvent (int inEventType)
	stop ignoring events of a particular type More...

Additional Inherited Members
Related Functions inherited from SpriteLayer
	cleanupSpriteLayer
	free all the memory used by a SpriteLayer More...
	createSpriteLayer
	create a new SpriteLayer attached to a particular port More...
	createSpriteLayerFromSCMLFile
	create a new SpriteLayer from an Spriter SCML file More...
Related Functions inherited from ISerializable
	registerSerializableClass
	register a particular class as implementing ISerializable interface More...

Detailed Description

efficiently handles large tile datasets, useful for backgrounds, terrains, etc...

Note

API Stability: 2 - Unstable. The API is in the process of settling, but has not yet had sufficient real-world testing to be considered stable. Backwards-compatibility will be maintained if reasonable.

Capabilities

Each TileLayer has a tile set, a set of equal size tiles taken from a single image. There can be at most 256 tiles in an image.

Tile sets can contain transparency, either through a transparent color or via an alpha channel. If a tile set does not contain transparency, then the entire tile world will be filled in solid, there is no way to leave out a tile. In tile sets with transparency, tile type 0 is considered empty, even if the there is no transparency in the actual image.

Tile sets can support tile rotation (facing) or tile flipping (vertical, horizontal, or both). You cannot use both rotation and flipping in the same layer.

Warning

While individual tiles can be rotated, the TileLayer itself cannot. This is a departure from the expected capabilities of SpriteLayers in general, and will be addressed in a future release.

Getting the Results you Want

For truly impressive maps, you will rarely use just a single TileLayer. Because TileLayers are highly optimized for large areas of transparent/empty tiles, you can use a number of linked TileLayers that each focus on different details: water, terrain, ground cover, flowers and shrubs, trees, etc...

You can intersperse regular SpriteLayers in between TileLayers to provided animated effects to make your characters move at the right layer (underneath the tree-tops, for example).

Be sure to link together all your layers using SpriteLayer.moveWith().

See Also

defineTileSet

Image.setTransparentColor

SpriteLayer.moveWith

Member Function Documentation

checkCollision	(	Sprite	movingSprite,
		uint	alphaThreshold = 128,
		boolean	shortCircuit = true
	)

see if a sprite has collided with tiles in a layer

defineTileSet	(	int	tileWidth,
		int	tileHeight,
		Image	tiles,
		boolean	hasTransparency = true,
		boolean	flipTiles = false
	)

define image and dimensions for the tiles used by this layer

Each TileLayer has a set of equal size tiles taken from a single image. The tileWidth and tileHeight specify the size of each individual tile in the image, and the image should divide evenly into tiles with no left-over space. There can be at most 256 tiles in an image.

Tile sets can contain transparency, either through a transparent color or via an alpha channel (See Image for more details on transparency).

Tile sets can support tile rotation (facing) or tile flipping (vertical, horizontal, or both). You cannot use both rotation and flipping in the same layer.

To support rotation, you must have a maximum of 64 tiles in your tile set. Typically the tiles would be arranged in an 8x8 grid, with the top left corner tile being considered tile 0 and then counting left to right, top to bottom.

To support flipping in both directions, your tile set should be laid out just like for rotation, 64 tiles in an 8x8 grid. For horizontal flipping only, you should have 128 tiles in an 8x16 grid, and for vertical flipping only you should have 128 tile in a 16x8 grid. For all kinds of flipping you must pass true for the flipTiles parameter when you call defineTileSet().

MemBlock getMapData	(	int	mapWidth = 0,
		int	mapHeight = 0,
		int	srcX,
		int	srcY
	)

getTileSetImage

(

)

get the Image currently being used as a tile set

getTileSize

(

)

get size of a tile in the image

Returns

Point with x (width) and y (height) values

getTileTypeAndFacingAt	(	int	x,
		int	y
	)

get the tile type and the facing/flipped state of the tile

Parameters

x	component of x,y coordinates on the map
y	component of x,y coordinates on the map

Returns

a JavaScript object with tileType and facing. Unlike getTileTypeAt(), this separates the facing/flipping information from the raw tile type, so the tile type is the actual index into your tile set.

> console.log(myTileLayer.getTileTypeAndFacingAt(0,0);
{ tileType: 61, facing: 128 }

See Also

setTileTypeAt

getTileTypeAt

getTileTypeAt	(	int	x,
		int	y
	)

get the tile type at a particular spot on the map

Parameters

x	component of x,y coordinates on the map
y	component of x,y coordinates on the map

Returns

the tile type. This is the raw data as stored in the TileLayer, so it includes rotation/flipping information in the high bits. It can only be used directly as the index into your tile set on TileLayers that aren't using tile rotation or flipping.

See Also

getTileTypeAndFacingAt

setTileTypeAt

getWorldBounds

(

)

get the size in layer coordinates of the world map

Returns

the layer coordinates of the boundaries of the world map

Warning

this is not necessarily the pixel location for drawing, since it doesn't account for layer movement, rotation or zoom. You need to call layerToPortRect() on this to get pixel drawing coordinates.

getWorldSize

(

)

get the number of tiles in the map

Returns

a rectangle with the dimensions of the world map in number of tiles. If you want to get the pixel size for drawing use getWorldBounds() instead.

See Also

getWorldBounds

setWorldSize

loadMapData	(	BinaryString	data,
		int	mapWidth = 0,
		int	mapHeight = 0,
		int	dstX,
		int	dstY
	)

loadMapData	(	MemBlock	data,
		int	mapWidth = 0,
		int	mapHeight = 0,
		int	dstX,
		int	dstY
	)

setTileTypeAt	(	int	x,
		int	y,
		uint	t,
		uint	facing = facing_Ignore
	)

sets the type of tile at a given location on the map

Parameters

x	the horizontal tile position on the map (not pixels)
y	the vertical tile position on the map (not pixels)
t	the type of tile (the tile index in the tile set image)
facing	the rotation (or flipping) to use for this tile, defaults to none, ignored on layers that aren't using facing or flipping

setWorldSize	(	int	width,
		int	height,
		boolean	repeatingX = false,
		boolean	repeatingY = false
	)

sets the number of tiles in the world map

Parameters

width	how many tiles wide the world should be
height	how many tiles high the world should be
repeatingX	true if the map should wrap around horizontally to appear infinite, defaults to false
repeatingY	true if the map should wrap around vertically to appear infinite, defaults to false
