Font Class Reference

font for text drawing and measuring (GUI Only) More...

Public Member Functions

number getFontAscent (number size, int style=textStyle_Plain)
 get the distance from the top of the font to the baseline More...

number getFontDescent (number size, int style=textStyle_Plain)
 get the distance from the baseline to the bottom of the font More...

number getFontHeight (number size, int style=textStyle_Plain)
 get the total height of a line of text in this font, including spacing More...

number getFontLeading (number size, int style=textStyle_Plain)
 get the distance between lines of the font More...

string getFontName ()
 get the name of this font More...


Detailed Description

font for text drawing and measuring (GUI Only)

Precondition
API Stability: 3 - Stable. The API has proven satisfactory, but cleanup in the underlying code may cause minor changes. Backwards-compatibility is guaranteed.

You cannot create fonts directly, they must be loaded by the Graphics Manager. Drawing text is done through the Port class after assigning a font. The Font object is read only, and has methods for getting measurement info (Font Metrics) for the font.

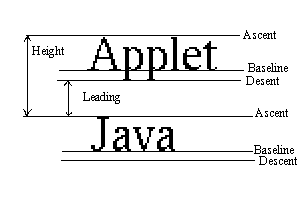

Font Metrics:

Font Metrics Illustration
See Also
GraphicsManager.createFont
Port.getCurrentFont
Port.setFont
Port.setFontForStyle
Port.setFontScalingFactor

Member Function Documentation

getFontAscent ( number  size,
int  style = textStyle_Plain
)

get the distance from the top of the font to the baseline

Parameters
sizethe font size you are getting the ascent for
style(optional) the Font Style, defaults to textStyle_Plain if not passed
Returns
the distance in pixels
getFontDescent ( number  size,
int  style = textStyle_Plain
)

get the distance from the baseline to the bottom of the font

Parameters
sizethe font size you are getting the descent for
style(optional) the Font Style, defaults to textStyle_Plain if not passed
Returns
the distance in pixels
getFontHeight ( number  size,
int  style = textStyle_Plain
)

get the total height of a line of text in this font, including spacing

Parameters
sizethe font size you are getting the height for
style(optional) the Font Style, defaults to textStyle_Plain if not passed
Returns
the distance in pixels
getFontLeading ( number  size,
int  style = textStyle_Plain
)

get the distance between lines of the font

Parameters
sizethe font size you are getting the leading for
style(optional) the Font Style, defaults to textStyle_Plain if not passed
Returns
the distance in pixels
getFontName ( )

get the name of this font

Returns
a string with the font name
