Deserializer Class Reference

Inheritance diagram for Deserializer:

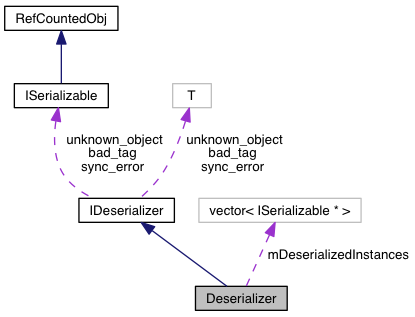

Collaboration diagram for Deserializer:

Public Member Functions
virtual uint64	deserialize_8u ()
	Deserialize an 8 byte (64 bit) value.
virtual uint32	deserialize_4u ()
	Deserialize a 4 byte (32 bit) value.
virtual uint32	deserialize_3u ()
	Deserialize a 3 byte (24 bit) value.
virtual uint16	deserialize_2u ()
	Deserialize a 2 byte (16 bit) value.
virtual uint8	deserialize_1u ()
	Deserialize an 1 byte (8 bit) value.
virtual bool	deserialize_bool ()
	Deserialize a boolean (1 bit) value.
virtual uint32	deserialize_uint ()
	Deserialize an unsigned value.
virtual Color	deserialize_color () MAY_THROW(out_of_data)
	Deserialize a pdg::Color value.
virtual Offset	deserialize_offset () MAY_THROW(out_of_data)
	Deserialize a pdg::Offset value.
virtual Rect	deserialize_rect () MAY_THROW(out_of_data)
	Deserialize a pdg::Rect.
virtual RotatedRect	deserialize_rotr () MAY_THROW(out_of_data)
	Deserialize a pdg::RotatedRect.
virtual Quad	deserialize_quad () MAY_THROW(out_of_data)
	Deserialize a pdg::Quad.
virtual uint32	deserialize_str (char *outStr, uint32 strMaxLen)
	Deserialize a string value.
virtual uint32	deserialize_strGetLen ()
	get length of a string value, as if it were deserialized
virtual uint32	deserialize_mem (void *outMem, uint32 memMaxLen)
	Deserialize an arbitrary block of memory.
virtual uint32	deserialize_memGetLen ()
	Deserialize a string value.
virtual ISerializable *	deserialize_obj ()
	Deserialize a serializable object.
void	setDataPtr (void *ptr, uint32 ptrSize)
	Deserializer ()
	Deserializer (void *ptr, uint32 ptrSize)
virtual	~Deserializer ()
Public Member Functions inherited from IDeserializer
int64	deserialize_8 () MAY_THROW(out_of_data)
int32	deserialize_4 () MAY_THROW(out_of_data)
int16	deserialize_2 () MAY_THROW(out_of_data)
int8	deserialize_1 () MAY_THROW(out_of_data)
float	deserialize_f () MAY_THROW(out_of_data)
	Serialize a floating point value into a buffer.
double	deserialize_d () MAY_THROW(out_of_data)
	Serialize a double precision floating point value into a buffer.
Point	deserialize_point () MAY_THROW(out_of_data)
	Deserialize a pdg::Point value.
Vector	deserialize_vector () MAY_THROW(out_of_data)
	Deserialize a pdg::Vector value.
void	deserialize_string (std::string &outStr) MAY_THROW((out_of_data
	Deserialize a string value into a std::string.
template<typename T >
T *	deserialize_ref () MAY_THROW((out_of_data
	Deserialize a reference to a non-serializable object.

Protected Member Functions
virtual char *	statusDump (int hiliteBytes=0)
virtual void *	deserialize_ptr ()

Protected Attributes
uint8 *	mDataPtr
uint8 *	mDataEnd
uint8 *	p
uint32	mDataSize
uint8	mLastBoolByte
int	mBoolBitOffset
bool	mUsingTags
std::vector< ISerializable * >	mDeserializedInstances
Protected Attributes inherited from IDeserializer
virtual void	bad_tag
virtual void	sync_error
virtual void	unknown_object = 0

Additional Inherited Members
Public Types inherited from IDeserializer
typedef ISerializable *(*	CreateSerializableFunc )()
Static Public Member Functions inherited from IDeserializer
template<class T >
static void	registerClass ()
	Register a class that is derived from Serializable.
static void	registerClass (uint32 classTag, CreateSerializableFunc classNewFunc)
	Register a class that is derived from ISerializable.
static void	registerObject (void *obj, uint32 uniqueId)
	Register object that is not serializable for use with |de|serialize_ref()
Public Attributes inherited from IDeserializer
virtual uint32	bad_tag = 0
void	bad_tag
virtual ISerializable	bad_tag
virtual ISerializable	sync_error
virtual ISerializable	unknown_object = 0
T	bad_tag
T	sync_error
T	unknown_object
Static Public Attributes inherited from IDeserializer
static int	s_TraceDepth

Detailed Description

A class to serialize data into memory

Constructor & Destructor Documentation

Deserializer

(

)

Deserializer	(	void *	ptr,
		uint32	ptrSize
	)

virtual ~Deserializer ( )

virtual

Member Function Documentation

virtual uint8 deserialize_1u ( )

virtual

Deserialize an 1 byte (8 bit) value.

internal pointer is advanced 1 btye

Returns

the deserialized 8 bit value

Implements IDeserializer.

virtual uint16 deserialize_2u ( )

virtual

Deserialize a 2 byte (16 bit) value.

internal pointer is advanced 2 btyes

Returns

the deserialized 16 bit value

Implements IDeserializer.

virtual uint32 deserialize_3u ( )

virtual

Deserialize a 3 byte (24 bit) value.

internal pointer is advanced 3 btyes

Returns

the deserialized 24 bit value

Implements IDeserializer.

virtual uint32 deserialize_4u ( )

virtual

Deserialize a 4 byte (32 bit) value.

internal pointer is advanced 4 btyes

Returns

the deserialized 32 bit value

Implements IDeserializer.

virtual uint64 deserialize_8u ( )

virtual

Deserialize an 8 byte (64 bit) value.

internal pointer is advanced 8 btyes

Returns

the deserialized 64 bit value

Implements IDeserializer.

virtual bool deserialize_bool ( )

virtual

Deserialize a boolean (1 bit) value.

internal pointer gets advanced by 1 or 0 bytes, depending on bytes required to store the value

Returns

the boolean that was deserialized This is optimized for series of boolean values, so that between 1 and 8 bools serialized sequentially only use a single byte

Implements IDeserializer.

virtual Color deserialize_color ( )

virtual

Deserialize a pdg::Color value.

internal pointer is advanced by ? bytes, depending on bytes required to store value

Returns

the Color that was deserialized

Implements IDeserializer.

virtual uint32 deserialize_mem ( void *  outMem, uint32  memMaxLen  )

virtual

Deserialize an arbitrary block of memory.

Parameters

p	a reference to a buffer pointer; pointer gets advanced past mem block to start of next entity in buffer
outMem,a	buffer to hold the resulting block of memory
memMaxLen,the	max length of the output block, that the buffer can accomodate If the serialized string is longer than outStrMaxLen, it will be truncated and the buffer pointer p will still be advanced past the string to the start of the next entity in the buffer.

Returns

the length of the string in bytes

Reimplemented from IDeserializer.

virtual uint32 deserialize_memGetLen ( )

virtual

Deserialize a string value.

internal pointer is NOT advanced. Use this to pre-flight allocation for blocks of memory

Returns

the length of the serialized block of memory in bytes

Reimplemented from IDeserializer.

virtual ISerializable* deserialize_obj ( )

virtual

Deserialize a serializable object.

internal pointer gets advanced past object to start of next entity in buffer

Returns

NULL, or a newly created Serializable object NULL return happens if serialized object reference was null, or if the object could not be deserialized If object could not be deserialized, either because the subclass was unknown or because the data was corrupt, the internal pointer will still be advanced past the object to the start of the next entity in the buffer.

Reimplemented from IDeserializer.

virtual Offset deserialize_offset ( )

virtual

Deserialize a pdg::Offset value.

internal pointer is advanced by 1 to 9 bytes, depending on bytes required to store value

Returns

the Offset that was deserialized

Implements IDeserializer.

virtual void* deserialize_ptr ( )

protectedvirtual

Reimplemented from IDeserializer.

virtual Quad deserialize_quad ( )

virtual

Deserialize a pdg::Quad.

internal pointer is advanced by 1, 3 or 5 bytes, depending on bytes required to store value

Returns

the Quad that was deserialized

Implements IDeserializer.

virtual Rect deserialize_rect ( )

virtual

Deserialize a pdg::Rect.

internal pointer is advanced by ? bytes, depending on bytes required to store value

Returns

the Rect that was deserialized

Implements IDeserializer.

virtual RotatedRect deserialize_rotr ( )

virtual

Deserialize a pdg::RotatedRect.

internal pointer is advanced by ? bytes, depending on bytes required to store value

Returns

the RotatedRect that was deserialized

Implements IDeserializer.

virtual uint32 deserialize_str ( char *  outStr, uint32  strMaxLen  )

virtual

Deserialize a string value.

Parameters

outStr,a	buffer to hold the resulting string
strMaxLen,the	max length of the output string, including the NUL terminator, that the buffer can accomodate If the serialized string is longer than outStrMaxLen, it will be truncated and the internal pointer p will still be advanced past the string to the start of the next entity in the internal buffer.

Returns

the length of the string in bytes

Reimplemented from IDeserializer.

virtual uint32 deserialize_strGetLen ( )

virtual

get length of a string value, as if it were deserialized

internal pointer is NOT advanced. Use this to pre-flight allocation for longer strings

Returns

the length of the serialized string in bytes

Reimplemented from IDeserializer.

virtual uint32 deserialize_uint ( )

virtual

Deserialize an unsigned value.

internal pointer is advanced by 1, 3 or 5 bytes, depending on bytes required to store value

Returns

the unsigned value that was deserialized

Implements IDeserializer.

void setDataPtr	(	void *	ptr,
		uint32	ptrSize
	)

virtual char* statusDump ( int  hiliteBytes = 0 )

protectedvirtual

Implements IDeserializer.

Member Data Documentation

int mBoolBitOffset

protected

uint8* mDataEnd

protected

uint8* mDataPtr

protected

uint32 mDataSize

protected

std::vector<ISerializable*> mDeserializedInstances

protected

uint8 mLastBoolByte

protected

bool mUsingTags

protected

uint8* p

protected
